Casa /Prodotti/Macchina per pozzi montata su trattore/Construction works   FY350 Multifunctional Hydraulic Crawler Deep Water Well Drilling Rig Equipment For Sale

Construction works   FY350 Multifunctional Hydraulic Crawler Deep Water Well Drilling Rig Equipment For Sale

1.0 Sets
MOQ
Construction works   FY350 Multifunctional Hydraulic Crawler Deep Water Well Drilling Rig Equipment For Sale
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Applicable Industries: Construction works , Energy & Mining
Showroom Location: None
Condition: New
Type: Water well drilling rig
Power Type: Diesel
Usage: Water Well
Weight: 9000 KG
Warranty: 1 Year
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 6 months
Core Components: Pump, Gearbox
Key Selling Points: Competitive Price
Drilling Diameter: 140-325mm
Drilling Depth: Max.350m
Product name: Multifunctional Hydraulic Water Well Drill Rig
Advantage: High Efficiencly Low Enery
Quality: Advanced technology
Spare parts supply: Anytime
Drill depth: 350m
Drilling diameter: 140-325mm
Drilling depth: 350m
Online service: 24 hours online
Prezzo: Negotation
MOQ: 1set
Informazioni di base
Termini di pagamento e spedizione
Packaging Details: carton packing
Supply Ability: 10 Set/Sets per Month
Descrizione di prodotto
Product Description

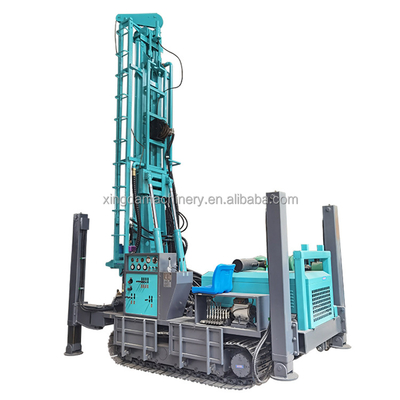

FY350 Multifunctional Crawler Deep Borewell Water Well Drilling Rig Price

Application FY350 multifunctional hydraulic well drilling rig series mainly applied to industrial and civil drilling and geotemperature drilling. It has the advantages of large diameter of drilling hole, deep drilling, fast footage, and high efficiency.
Main features
1) Engine: adopts the famous Yuchai brand turbocharged version engine.
2) Crawler Driving Gear: the designed motor with a speed reduction gearbox prolongs the service life.
3) Hydraulic oil pump: It uses parallel gearbox (which is a patent) to separate oil pump monomer, supply adequate power and distribute reasonable. The hydraulic system adopts unique design, which is easy to maintain and can lower the maintenance cost.
4) Rotary head device: integrated casting gearbox , dual motor power, large torque, durable, small maintenance costs.
5) Drill chassis: the professional excavator chassis provides durability and strong load capacity, the wide roller chain plate causes small damage to the concrete pavement.
6) Lifting force: patent designed composite arm with small size yet long stroke, double cylinder lifting, strong lifting capacity.
7) The lift arm is installed with a limiter to protect cylinder and ensure the safety of work 8) Each hydraulic tubing is covered with a protective shell to effectively extend the service life of pipeline.
Model
FY350
Drilling diameter(mm)
140-325
Drilling depth(m)
350
One time propelling length(mm)
6600
Diesel power(Kw)
95
Walking speed(km/h)
2.5
Ground Distance (mm)
250
Climbing ability (Max)
30
Rotary speed(rpm)
55-115
Lifting force(T)
24
Rotary torque(N.m)
6200-8500
Air consumption
(m³/min)
17-35
Working pressure(Mpa)
1.7-3.3
Size(mm)
5900*2000*2850
MOQ
1Set
Price(usd)
35000
The penetration efficiency(m/h)
15-35
MOQ
1Set
